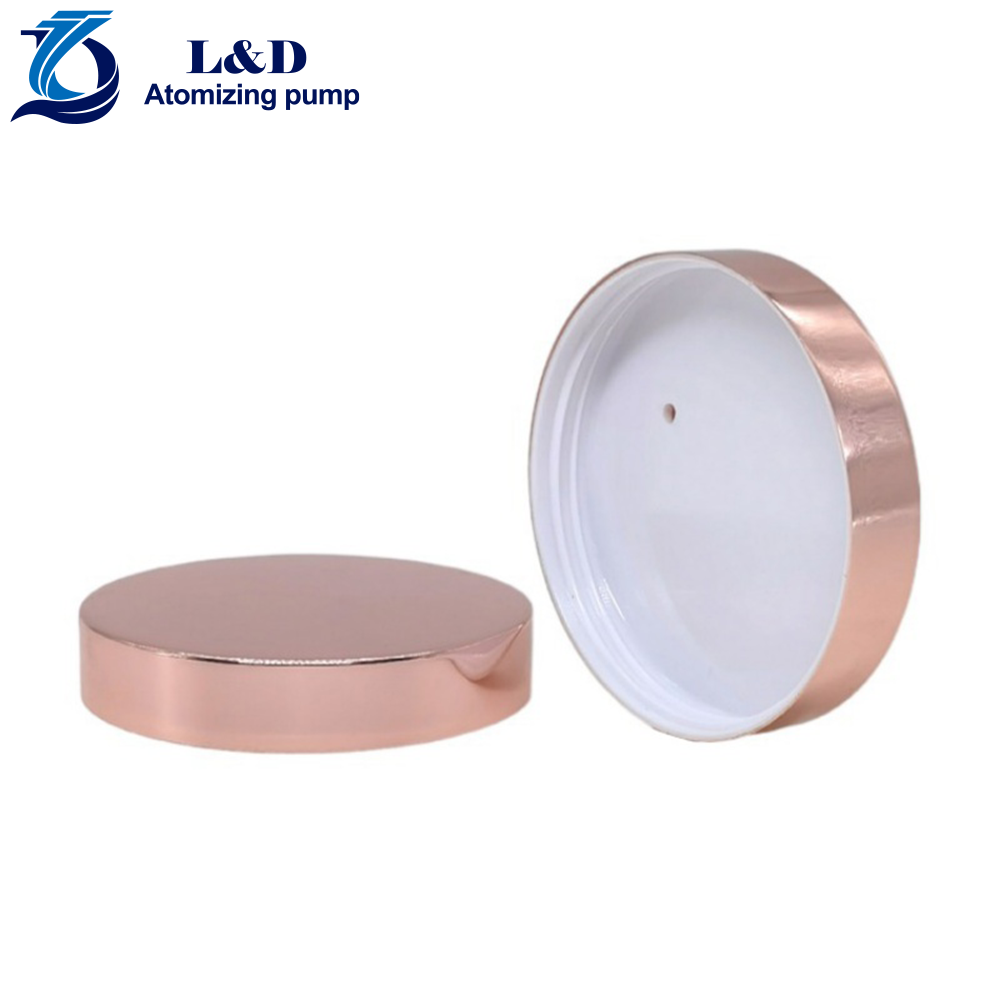

What Finishing Options Are Available for Custom Aluminum Caps?

Raw aluminum naturally forms a protective oxide layer upon exposure to oxygen. However, untreated surfaces rarely meet the rigorous aesthetic, mechanical, or environmental demands of commercial, automotive, and architectural applications. Specifying the wrong surface finish for Aluminum Caps leads to premature corrosion, dimensional tolerance failures during assembly, or aesthetic degradation under UV exposure. An improper finish fails to provide a clean, sealed barrier against water and debris. This ultimately increases lifecycle replacement rates for the entire structure.

You must strictly evaluate mechanical preparations, electrochemical conversions, and applied coatings to ensure long-term performance. We will break down the technical realities, performance trade-offs, and implementation risks of each finishing option. This ensures you align material properties with environmental demands for optimal specification on your next project.

• Electrochemical Superiority: Anodizing integrates with the aluminum substrate, offering superior surface hardness and corrosion resistance without the risk of peeling or delamination found in applied coatings.

• Aesthetic Versatility: Powder coating and specialty imaging (like wood grain sublimation) provide the broadest spectrum of color matching and UV stability, essential for architectural structures like patio covers and column bases.

• Tolerance Management: Specifying finishes for custom aluminum caps requires precise calculation of dimensional changes; both applied coatings and hardcoat anodizing alter final part tolerances.

• Baseline Economics: Mill finish remains the most cost-effective option for concealed components but requires controlled environments to prevent uncontrolled oxidation and galvanic corrosion.

Defining Success Criteria for Aluminum Caps Finishes

Establish the operational baseline before evaluating specific finishing technologies. Assessing the application environment dictates the necessary protection level. Look closely at potential exposure to salt spray in marine settings, high ambient humidity, extreme temperature fluctuations, or harsh alkaline cleaning chemicals. Extruded 6063 aluminum behaves differently than machined 6061-T6 when exposed to these elements. Each of these environmental stressors degrades raw aluminum rapidly if left unprotected.

Evaluate how the cap interacts with the broader assembly. Ensure the selected finish allows the cap to provide a clean, weather-tight seal for pipe ends, H-posts, or structural extrusions. A proper finish maintains the dimensional integrity required for interference fits or O-ring seals. This prevents water ingress and subsequent internal structural damage. If a cap fits too loosely due to an undersized coating, moisture will bypass the seal and pool inside the structural tubing.

Determine the required surface hardness for your specific application. Evaluate if the components will face repeated friction, mechanical impact, or heavy handling during their operational lifespan. Physical abrasion easily compromises weak surface coatings, exposing the raw aluminum underneath to oxidation. Industrial environments often require finishes that can withstand tool strikes and heavy vibration without flaking.

Define the need for specific RAL color matching, gloss levels, or surface textures. Architectural integration often requires matching existing extrusions exactly or creating a seamless column-like look. Custom automotive rim center caps demand distinct visual profiles, high gloss levels, and precise branding elements. You must determine if the finish needs to be purely functional or if it serves as a primary visual focal point.

Identify necessary industry standards governing your specific sector. Military and aerospace applications often require MIL-A-8625 compliance for anodized components. Architectural coatings typically follow AAMA 2604 or 2605 specifications to guarantee long-term performance and UV resistance. Failing to specify these standards during procurement leads to rejected parts and compliance failures.

1. Audit the installation site for chemical exposure risks, including coastal salt spray, industrial runoff, or routine cleaning agents.

2. Measure the exact mating tolerances required for the cap to seal against the primary extrusion or pipe.

3. Determine the expected UV exposure hours per day to select the appropriate fade-resistant coating.

4. Review local building codes for specific architectural finish requirements on exterior structural components.

Mechanical Finishes: Preparing the Baseline

Mechanical finishes involve physical alterations to the aluminum surface prior to chemical treatments. In specific controlled applications, these mechanical alterations act as the final finish itself. Proper mechanical preparation dictates the success and adhesion of any subsequent coating.

Mill finish represents raw aluminum straight from the extrusion mill, CNC machine, or casting mold. It exhibits visible tool marks, extrusion lines, and minor surface imperfections. Use this finish for concealed structural components, internal mechanisms, or temporary protective pipe caps. It functions well where natural, uncontrolled oxidation remains acceptable and aesthetics are irrelevant.

Directional brushing creates uniform, linear scratch patterns across the metal surface. This process utilizes abrasive belts or wheels to generate a sleek, architectural look. We typically use 80 to 120-grit belts for heavy graining and 180 to 320-grit for finer, satin finishes. Mechanical polishing achieves high-reflectivity, mirror-like surfaces using progressive buffing compounds. Polishing is often a strict prerequisite before applying bright-dip anodizing to achieve a chrome-like appearance.

Bead or sand blasting creates a uniform matte texture across the component. Operators propel fine glass beads or aluminum oxide grit at high velocity against the metal. This process hides machining marks, removes surface contaminants, and significantly increases the surface area for subsequent coating adhesion. Vibratory tumbling with ceramic media serves a similar purpose, removing sharp burrs left by CNC lathes before the final finish is applied.

Post-process finish machining creates striking two-tone aesthetics. CNC machining strategically exposes raw, bright aluminum after a part has been fully anodized or powder coated. Manufacturers highly utilize this technique in automotive rim center caps and premium consumer goods. It delivers high-contrast, precision-machined visual accents that stand out against dark anodic layers.

Electrochemical Finishes: Anodizing Custom Aluminum Caps

Anodizing converts the aluminum surface into a durable, corrosion-resistant anodic oxide finish. Unlike paints or powders, this oxide layer integrates directly with the underlying aluminum substrate. It cannot chip, flake, or peel under normal conditions because it is part of the metal itself.

Type II sulfuric acid anodizing works perfectly for general corrosion resistance and vibrant dyeing applications. The standard thickness for Type II ranges from 0.1 to 1.0 mils. We run these tanks at room temperature, passing a direct current through the acid bath to build the oxide layer. This creates a highly porous surface ready to accept colored dyes.

Type III hardcoat anodizing is engineered specifically for extreme wear resistance and high dielectric properties. It builds a much thicker, denser layer, typically ranging from 1.0 to 3.0 mils, with significantly lower surface porosity. Hardcoat tanks operate at near-freezing temperatures to prevent the acid from dissolving the oxide layer as it forms. This results in a dense, dark gray or black finish, depending on the specific alloy composition.

Dyeing deposits organic or inorganic dyes directly into the porous anodic layer before the final sealing process. Exact color matching across different aluminum alloys presents distinct manufacturing challenges. For example, 6061 and 7075 alloys absorb dyes at different rates due to varying silicon and zinc contents. Batch processing also introduces inherent color variations based on tank temperature and immersion time. After dyeing, the parts enter a sealing bath—typically nickel acetate or hot water—which hydrates the aluminum oxide, swelling the pores shut and locking the dye inside.

Anodizing directly impacts final part dimensions. The electrochemical process follows a strict "half-in, half-out" growth rule. The oxide layer penetrates the substrate and builds outward equally. Adjust pre-anodize machining tolerances carefully. This precise calculation ensures Custom Aluminum Caps fit perfectly into their mating assemblies post-processing. If you specify a 2-mil hardcoat, the part will grow by 1 mil on all surfaces. For a threaded cap, this means a 2-mil reduction in the pitch diameter, which can easily cause assembly binding if not accounted for during the CNC turning phase.

Applied Coatings: Powder Coating and Specialty Finishes

Applied coatings place external protective and decorative layers over the aluminum substrate. These finishes rely on mechanical and chemical adhesion rather than integrating with the metal itself. Proper surface preparation, such as chromate conversion or zirconium-based pretreatments, ensures the coating bonds securely to the aluminum and prevents under-film corrosion.

Powder coating utilizes the electrostatic application of dry powder to the grounded aluminum part. Heat curing in an industrial oven at roughly 400 degrees Fahrenheit melts the powder, forming a tough thermoplastic or thermoset skin. Advantages include exceptional UV resistance, a thick protective barrier against moisture, and an extensive range of textures and RAL colors. Disadvantages include susceptibility to chipping upon heavy mechanical impact. The thicker build-up also negatively affects tight dimensional tolerances on precision end caps. A standard powder coat adds 2 to 4 mils of thickness per surface.

Cast aluminum parts often suffer from outgassing during the powder coat curing cycle. Trapped air expands and pushes through the melting powder, creating pinholes and surface defects. We mitigate this by pre-baking the cast caps before applying the powder, allowing the gases to escape before the final finish is applied.

Sublimation and wood grain imaging apply a specialized powder coat base followed by heat-transferring ink patterns directly into the coating. Operators wrap the coated part in a printed film, apply a vacuum, and bake the assembly. This process perfectly mimics wood grain, marble, or custom graphics. It is ideal for architectural patio covers, H-post caps, column bases, and fencing. You achieve a specific organic aesthetic without sacrificing the structural strength and weather resistance of aluminum.

Address plating and galvanic compatibility carefully during the specification phase. Steel pipe caps are frequently galvanized with zinc, but aluminum requires entirely different chemical treatments. Consider alternative plating options like electroless nickel for specific conductivity requirements. Isolate aluminum caps from dissimilar metals like carbon steel pipes using nylon washers or dielectric coatings. This prevents rapid galvanic corrosion in damp environments. When moisture bridges the gap between raw steel and aluminum, the aluminum acts as an anode and corrodes rapidly.

Evaluating Trade-Offs: Aesthetics, Durability, and Cost

Balancing competing project requirements requires a structured evaluation framework. Engineers must weigh initial production costs against long-term performance metrics. You cannot specify a finish based solely on visual appeal without understanding the mechanical limitations it introduces to the assembly line.

Compare the low upfront cost of mill finish against the lifecycle longevity of hardcoat anodizing or architectural-grade powder coating. While raw aluminum saves money initially, premature failure in corrosive environments drives up replacement expenses rapidly. Replacing a corroded cap on a structural column often requires extensive labor and scaffolding, far exceeding the initial cost of a proper finish.

Batch sizes dictate finish selection and unit economics. Custom anodizing colors often carry high minimum lot charges due to the necessity of mixing dedicated dye tanks. Standard powder coat runs prove highly efficient and cost-effective for large structural projects requiring uniform colors. If you only need fifty caps, a standard black anodize or stock powder coat color keeps the project viable.

Factor in additional processing time for multi-step finishes. Brushing followed by anodizing adds several days to the production schedule. Casting followed by precision finish machining requires complex CNC routing and specialized fixturing. Masking internal threads or specific O-ring grooves adds significant manual labor costs to the finishing process. Single-step applied coatings generally offer faster turnaround times and streamline overall supply chain logistics.

Implementation Risks and Quality Assurance

Prevent failures during procurement and assembly by actively managing known finishing risks. Anticipating these issues prevents costly rework and project delays on the job site.

Powder coating can add 2 to 4 mils of thickness per surface. This added material prevents caps from fitting into or over pipes and extrusions, compromising the intended weather seal. Mitigate this by masking critical mating surfaces with high-temperature silicone plugs or tape before coating. Alternatively, adjust the initial CAD models to account for post-coating dimensions, ensuring a flush, sealed fit. We frequently see field installers forced to grind off powder coating just to hammer a cap into place, which immediately destroys the corrosion barrier.

Dyed anodized parts risk fading under direct sunlight. Batch-to-batch color mismatch is also a common quality control issue. Specify UV-stable organic dyes or utilize electrolytic coloring (two-step anodizing) for outdoor use. Opting for UV-rated thermoset powder coats offers the safest route for outdoor architectural applications requiring strict color fastness.

Liquid and powder coatings often thin out on sharp corners due to surface tension. They may also fail to coat deep recesses entirely due to the Faraday cage effect, where electrostatic forces repel the powder. Specify generous edge radiusing during the machining phase. Rounded edges ensure uniform coating adhesion, consistent thickness, and eliminate weak points susceptible to corrosion.

Implement strict quality assurance testing protocols upon receiving finished components to verify performance.

• Perform a cross-hatch adhesion test on powder-coated batches to verify proper surface pretreatment.

• Use an eddy current thickness gauge to confirm anodize or powder coat layers meet the specified mil thickness.

• Conduct salt spray testing on sample pieces if the caps will be deployed in coastal or marine environments.

• Verify color consistency using a spectrophotometer rather than relying solely on visual inspection under varying light conditions.

Conclusion

1. Define your exact environmental exposure parameters, including UV index and chemical contact risks, before selecting a finish category.

2. Calculate your required dimensional tolerances in your CAD models to account for specific coating thicknesses and the "half-in, half-out" growth of anodizing.

3. Consult with a finishing specialist to verify galvanic compatibility with mating components and specify appropriate dielectric isolation methods.

4. Prototype your selected finish on a small batch to verify color match, mechanical fit, and weather seal integrity before authorizing full-scale production.

FAQ

Q: Can you powder coat over anodized aluminum caps?

A: Yes. Anodizing provides an excellent, corrosion-resistant base layer for powder coating. The porous nature of an unsealed anodized layer significantly improves the mechanical adhesion of the powder coat. Standard sealed anodized parts require light mechanical abrasion or chemical etching to ensure proper powder adhesion before baking.

Q: How much thickness does hardcoat anodizing add to custom aluminum caps?

A: Type III hardcoat anodizing typically creates an oxide layer between 1.0 and 3.0 mils thick. Because anodizing follows a "half-in, half-out" growth rule, a 2.0-mil hardcoat penetrates the aluminum substrate by 1.0 mil and increases the external surface dimension by 1.0 mil. Adjust machining tolerances accordingly.

Q: What is the most UV-resistant finish for outdoor aluminum caps and patio structures?

A: Architectural-grade powder coating and sublimation offer the highest UV resistance. These applied coatings utilize UV-stable thermoset resins that resist fading, chalking, and degradation under prolonged sunlight. They easily outperform standard dyed anodizing in exposed outdoor environments, maintaining color integrity for decades.

Q: Are mill finish aluminum caps suitable for marine environments?

A: No. Mill finish leaves raw aluminum exposed. While aluminum naturally forms a thin oxide layer, the high salt concentration and constant moisture in marine environments rapidly accelerate pitting and galvanic corrosion. Marine applications require heavy-duty protection, such as Type III hardcoat anodizing or marine-grade powder coating.

Q: Can custom aluminum caps be machined after they are anodized or powder coated?

A: Yes. Post-process finish machining is a common technique used to create striking two-tone aesthetics. CNC tools cut through the anodized layer or powder coat to expose the bright, raw aluminum underneath. This method is frequently used for automotive rim center caps and premium consumer goods.

Q: How do I prevent galvanic corrosion when using aluminum caps on steel structures?

A: You must physically isolate the aluminum from the steel. Use dielectric barriers such as nylon washers, rubber gaskets, or specialized isolation tape between the mating surfaces. Applying a thick, non-conductive powder coat to the aluminum cap also prevents the direct metal-to-metal contact required for galvanic corrosion.
